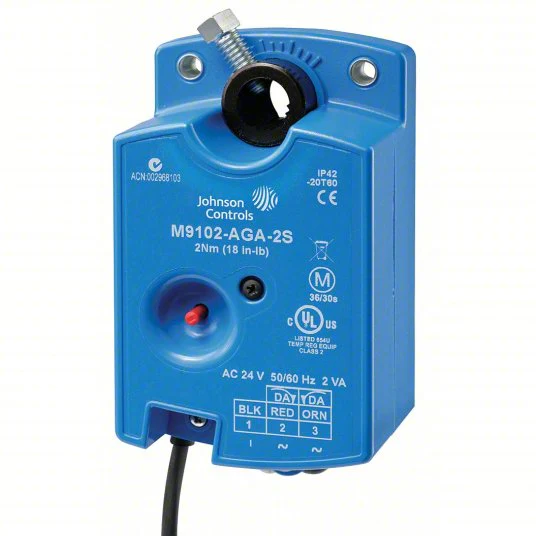

Actuator: Damper, Floating Point/On/Off, Non-Spring Return, 18 in-lb, 24V AC, Hardwired

Product image 1

Actuator: Damper, Floating Point/On/Off, Non-Spring Return, 18 in-lb, 24V AC, Hardwired

Actuator: Damper, Floating Point/On/Off, Non-Spring Return, 18 in-lb, 24V AC, Hardwired

Non-fail-safe actuators have no fail-safe mechanism to provide movement during power outages. This makes them more compact and easier to maintain than fail-safe actuators. They open and close valves and dampers for non-critical components and infrastructure.

Item 41P464
Mfr. Model M9102-IGA-2S
Manufacturer Part Number   M9102-IGA-2S
Brand   JOHNSON CONTROLS
Product Type   Actuator
Application     Damper
Spring Return    Non-Spring Return
Signal Type   On/Off; Floating Point
Rated Torque   18 in-lb
Input Voltage   24V AC
Power Consumption   2.6 VA
Time to Close   30 sec
Electrical Connection Type   Hardwired
For Use With Building Automation Systems  Building Automation System Compatible
NEMA Rating  2
IP Rating IP42
Mounting Type Direct Mount
Maximum Operating Temperature  125 °F
Minimum Operating Temperature-4 °F
Includes   Anti-Rotation Bracket
Shaft Rotation  CW/CCW
Stroke Degree90°
Shaft TypeSelf-Centering Clamping
Overall Height2 in
Overall Width5 in
Overall Depth2-3/4 in
Number of Auxiliary Switches0
Auxiliary Switch Included  No
UNSPSC31251501
Country of Origin   Mexico

          Actuator: Damper, Floating Point/On/Off, Non-Spring Return, 18 in-lb, 24V AC, Hardwired

          Non-fail-safe actuators have no fail-safe mechanism to provide movement during power outages. This makes them more compact and easier to maintain than fail-safe actuators. They open and close valves and dampers for non-critical components and infrastructure.

          Item 41P464
          Mfr. Model M9102-IGA-2S
          Manufacturer Part Number   M9102-IGA-2S
          Brand   JOHNSON CONTROLS
          Product Type   Actuator
          Application     Damper
          Spring Return    Non-Spring Return
          Signal Type   On/Off; Floating Point
          Rated Torque   18 in-lb
          Input Voltage   24V AC
          Power Consumption   2.6 VA
          Time to Close   30 sec
          Electrical Connection Type   Hardwired
          For Use With Building Automation Systems  Building Automation System Compatible
          NEMA Rating  2
          IP Rating IP42
          Mounting Type Direct Mount
          Maximum Operating Temperature  125 °F
          Minimum Operating Temperature-4 °F
          Includes   Anti-Rotation Bracket
          Shaft Rotation  CW/CCW
          Stroke Degree90°
          Shaft TypeSelf-Centering Clamping
          Overall Height2 in
          Overall Width5 in
          Overall Depth2-3/4 in
          Number of Auxiliary Switches0
          Auxiliary Switch Included  No
          UNSPSC31251501
          Country of Origin   Mexico
                  $55.80

                  Original: $186.00

                  -70%
                  Actuator: Damper, Floating Point/On/Off, Non-Spring Return, 18 in-lb, 24V AC, Hardwired

                  $186.00

                  $55.80

                  Description

                  Actuator: Damper, Floating Point/On/Off, Non-Spring Return, 18 in-lb, 24V AC, Hardwired

                  Non-fail-safe actuators have no fail-safe mechanism to provide movement during power outages. This makes them more compact and easier to maintain than fail-safe actuators. They open and close valves and dampers for non-critical components and infrastructure.

                  Item 41P464
                  Mfr. Model M9102-IGA-2S
                  Manufacturer Part Number   M9102-IGA-2S
                  Brand   JOHNSON CONTROLS
                  Product Type   Actuator
                  Application     Damper
                  Spring Return    Non-Spring Return
                  Signal Type   On/Off; Floating Point
                  Rated Torque   18 in-lb
                  Input Voltage   24V AC
                  Power Consumption   2.6 VA
                  Time to Close   30 sec
                  Electrical Connection Type   Hardwired
                  For Use With Building Automation Systems  Building Automation System Compatible
                  NEMA Rating  2
                  IP Rating IP42
                  Mounting Type Direct Mount
                  Maximum Operating Temperature  125 °F
                  Minimum Operating Temperature-4 °F
                  Includes   Anti-Rotation Bracket
                  Shaft Rotation  CW/CCW
                  Stroke Degree90°
                  Shaft TypeSelf-Centering Clamping
                  Overall Height2 in
                  Overall Width5 in
                  Overall Depth2-3/4 in
                  Number of Auxiliary Switches0
                  Auxiliary Switch Included  No
                  UNSPSC31251501
                  Country of Origin   Mexico
