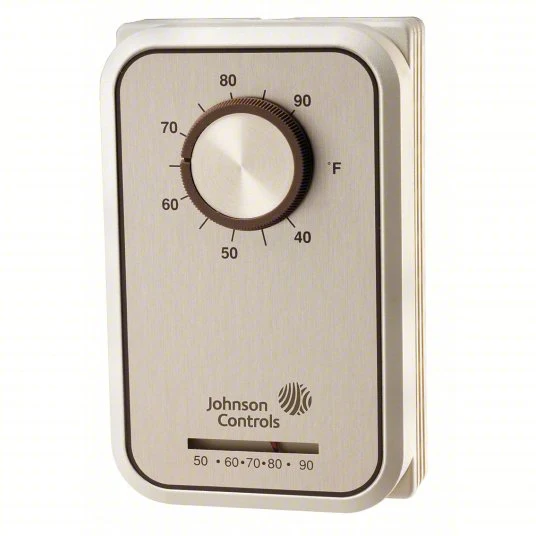

Line Volt Mechanical Tstat: Electric Cooling, Analog
Line Volt Mechanical Tstat: Electric Cooling, Analog
Analog thermostats are the most basic line-voltage thermostat option and use a dial to set the temperature of a space. These mechanical thermostats are often used in residential and commercial applications. They're nonprogrammable, so the temperature setting stays the same until it's readjusted.
Brand JOHNSON CONTROLS
Application Cool Only
Compatible System Type Electric Cooling
Control Type Exposed Dial
Differential Type Fixed
Display Type Analog
Fan Settings No Fan Setting
Housing Color Black; White
Housing Material Steel
Includes Positive Off Yes
Maximum Control Temperature90 °F
Minimum Control Temperature40 °F
Mounting Direction Vertical
Number of Cooling Stages1
Overall Depth2-5/8 in
Overall Height5-3/16 in
Overall Width2-13/16 in
Switch Action Close on Rise
Switch Type SPST
System Settings On-Off
Temperature Differential1.3°F
Temperature Readout No
Temperature Scale Fahrenheit/Celsius
Thermostat Type Line Voltage
Voltage24 to 277V AC
Contact Rating120V AC; 208V AC; 240V AC; 277V AC
Contact TypeSnap Action
Electrical Connection TypeScrew Terminals
Enclosure ColorBrown
Full Load Amps @ 120V AC6 A
Full Load Amps @ 240V AC3 A
Inductive Amps @ 120V6 A
Inductive Amps @ 240V3 A
Locked Rotor Amps @ 120V36 A
Locked Rotor Amps @ 240V18 A
Number of Poles1
Number of Switches1
Pilot Duty Rating125 VA
Remote Control FunctionsNo Remote Control Included
StandardsUL E6688
Switch PositionsAuto-Off
Mounting LocationWall
Mounting TypeSurface Mount
UNSPSC41112209
Country of OriginMexico (
